PROD Model:K222S
Window Size: 3*4mm
Output Signal:Analog signal output
Sensing Distance: 10M (lens SB-F-02)
See lens selection for different distances
Sensing Angle:120°(horizontal direction)
Working voltage: 3-15V
Static Noise:<80mV
Recommend Supporting IC: ISB6601L, RS8034, ISB02,BISSO001
Pyroelectric infrared sensor K222S, using
dual sensitive element design, internal adjustment of filter circuit
parameters and the use of 8-14μm infrared filter, enhance the anti-radio
frequency interference ability of the product, improve the working
stability of the sensor.
Analog signal output
Resistant to white light
Immunity to RF interference

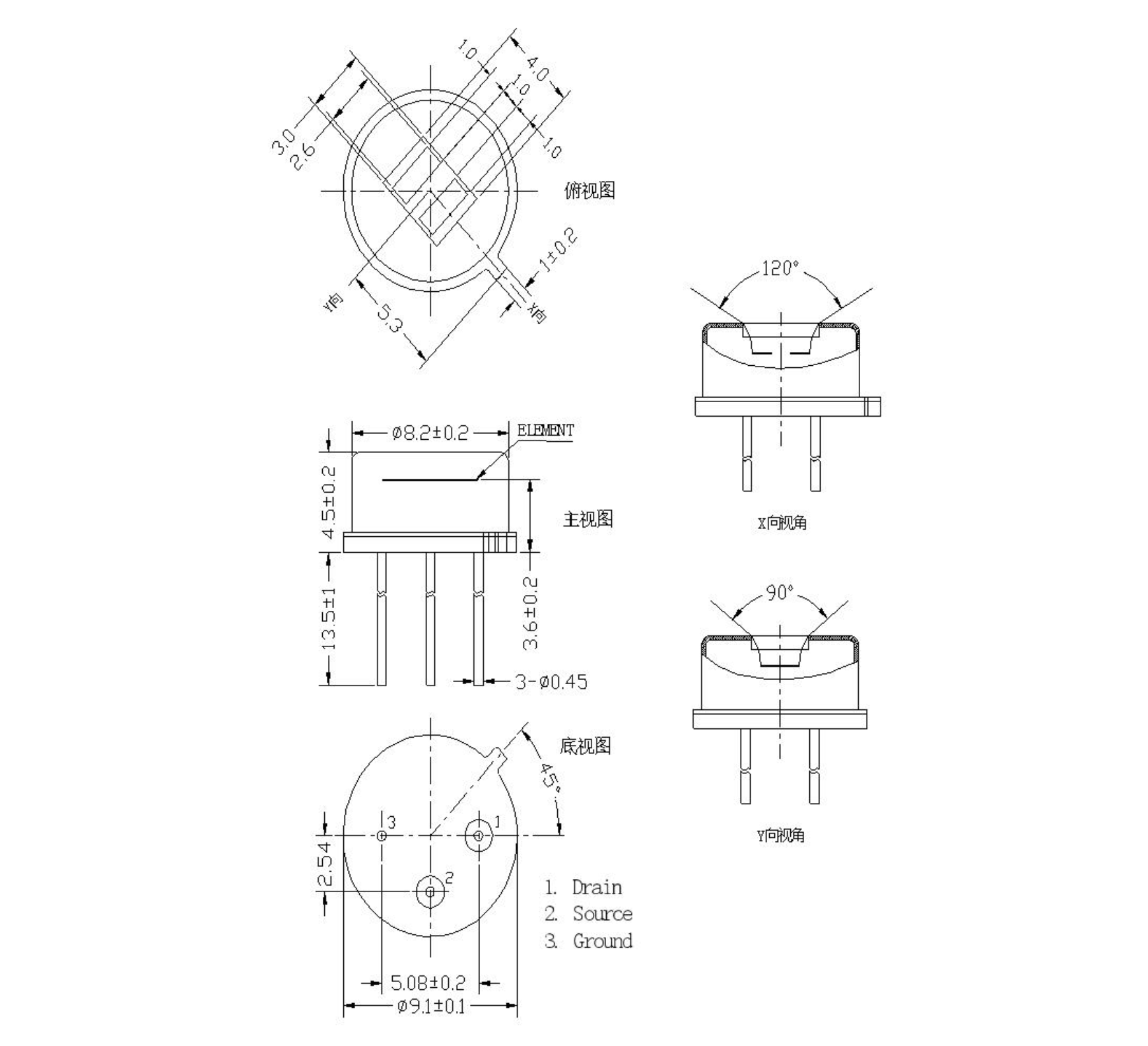

| Window size | 3*4mm |
| Infrared acceptance electrodes | 2.6*1mm 2elements |
| Encapsulation | To- 5 |
| Received wavelength | 8～14μ m |
| Transmittance | ≥ 75% |
| Output signal peak [Vp-p] | ≥ 3000mV |
| Sensitivity | ≥ 3300V/W |
| Detection rate(D*) | 1.4 ×108 cmHz1/2/W |
| Noise peak [Vp-p] | <80mV |
| Output balance | <10% |
| Source voltage | 0.3~0.85V |
| Supply voltage | 2~15V |
| Operating Temp | -30~70ºC |
| Storage Temp | -40~80ºC |
