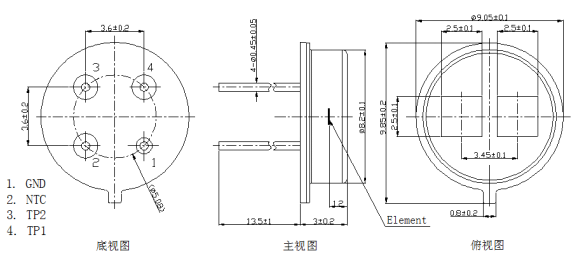

TO-39 Package
High Sensitivity
NTC Thermistor Compensation
Fast Response
4.26μm, 3.91μm Narrowband Filter
The NDIR gas sensor can measure the CO2 gas concentration through the
change of the resistance value of the internal thermistor. The product
is packaged in a TO-39 metal socket and has two separate filters: one is
the reference filter and the other is a narrow bandpass filter for the
CO2 gas band. The sensor integrates electronic components such as
thermopile chips and thermistor, with high reliability and high
sensitivity.
TO- 39 Housing
High sensitivity
NTC Thermistor Compensation
Fast response
4.26μm,3.91μm narrow bandpass filter
Parameter | Min. | Typ. | Max. | Unit | Conditions |
Chip size | 1.1×1.1 | mm2 | |||
Sensitive area | 0.35×0.35 | mm2 | |||
Thermopile resistance | 80 | 98 | 115 | KΩ | Temp=25℃ |
Noise voltage | 36±2 | nV/ Hz1/2 | Temp=25℃ | ||
NEP | 0.23 | nW/Hz1/2 | Blackbody=500K,1Hz@25℃ | ||
Responsivity | 134 | 164 | 194 | V/w | Blackbody=500K,1Hz@25℃ |
Temp. coefficient of resistance | 0.06 | %/℃ | Temp=25℃～ 75℃ | ||
Time constant | ≤ 13 | ms | |||
Specific detectivity | 1.51×108 | cmHz1/2/w | Blackbody=500K,1Hz@25℃ | ||
NTC Resistance | 100±3% | KΩ | 25℃ | ||
NTC β | 3950±1% | K | 25/50℃ | ||
