Infrared Longpass Filter
Center Wavelength:5500nm

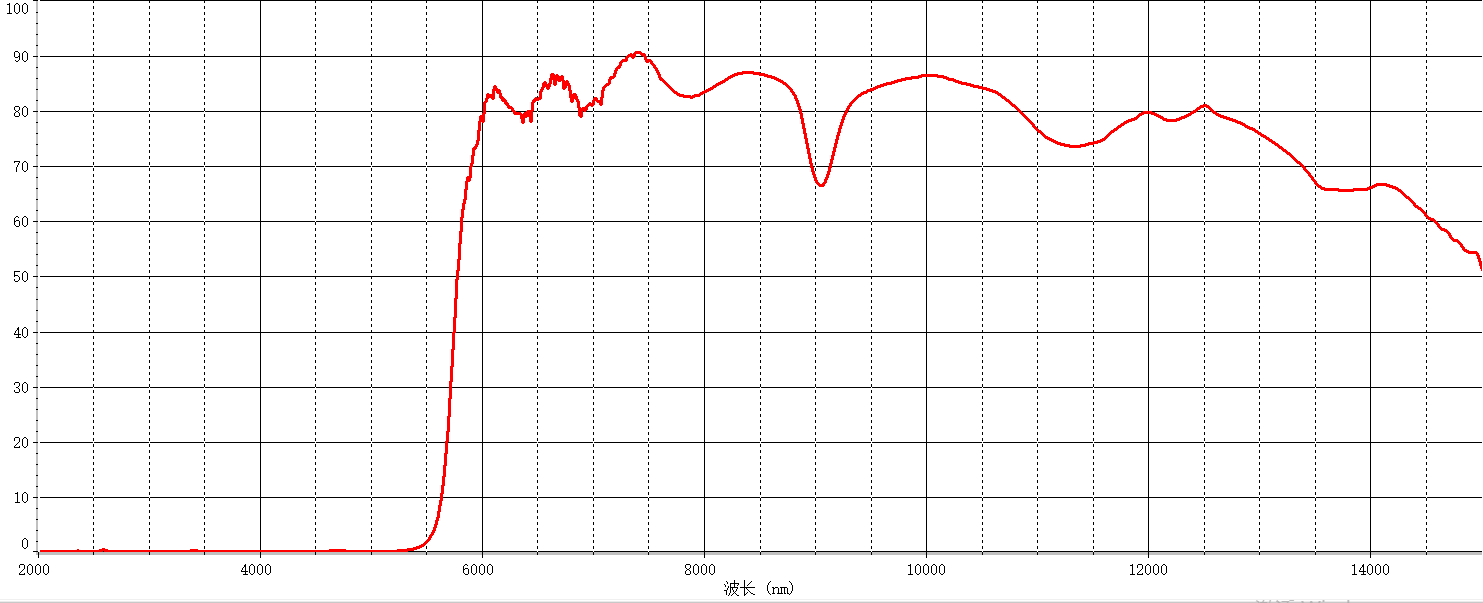

Transmittance:>75%
Cutoff bands except passband:1~5um Tave<1%
Basis:Silicon
Diameter: 150 ±0.50mm
Thickness:0.62±0.05mm
(Base 、diameter、 thickness can be customized）
The field of human body temperature measurement.
The field of human body temperature measurement.
Datasheet
| PROD | Cut-off wavelength | Transmittance | Basis | Cut-off depth | Diameter | Thick | Application | |
| Range | Tave | Tave | ||||||
| LWP5500nm | 1 -5um | 5500nm | T>75% | silicon | Tave<1% | 150±0.5mm | 0.62±0.05mm | The field of human body temperature measurement |
