Linear optocoupler
Pure resistor and non-polarity output
Wide range of analog linear resistance, "on" at the low resistance.
"off" at the high resistance.
Simple circuit configuration suitable for DC and AC use
Input to output isolation, and low distortion coupling
Optocoupler is a Optoelectronic devices which use the current changes to
control the resistance change. It is a Linear optocoupler which through
the strictly selected, aging, testing. It made up of CDS and LED. This
product belongs to the current input control,non-polarity resistance
output control type.
Pure resistor and non-polarity output.
Wide range of analog linear resistance, "on" at the low resistance. "off" at the high resistance.
Simple circuit configuration suitable for DC and AC use.
Input to output isolation, and low distortion coupling.
Datasheet
| Type | LCR- 0202 Series |
| Package | DIP-4 |
| Input current | 0- 20mA |
| Input Voltage | 1.6- 2.5Vdc |
| Output Light Resistance | 50Ω - 1KΩ @20mA- 0.01mA |
| Output Dark Resistance | 1Ω - 10MΩ @10 seconds off later |
| Response Period | <2.5mS |
| Insulating Voltage | >2500VRMS |
| Working Frequency | <300KHz |
| Max Power | 100mW |

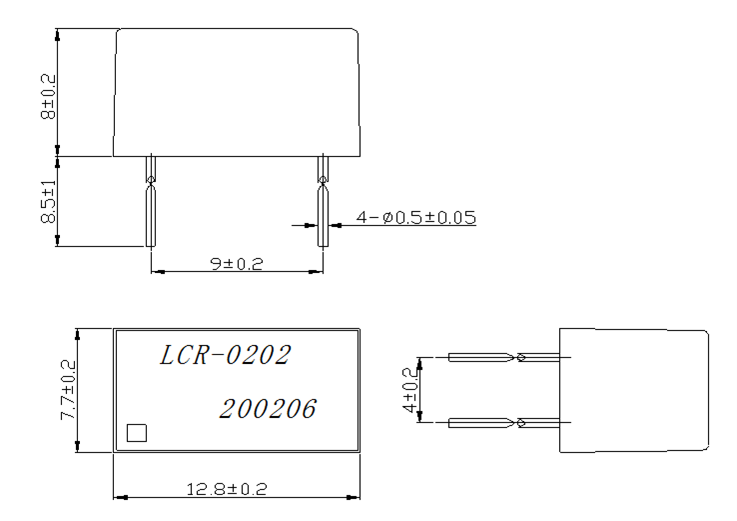

| Dimension(mm) | 12.5*7.5*8.0 |
